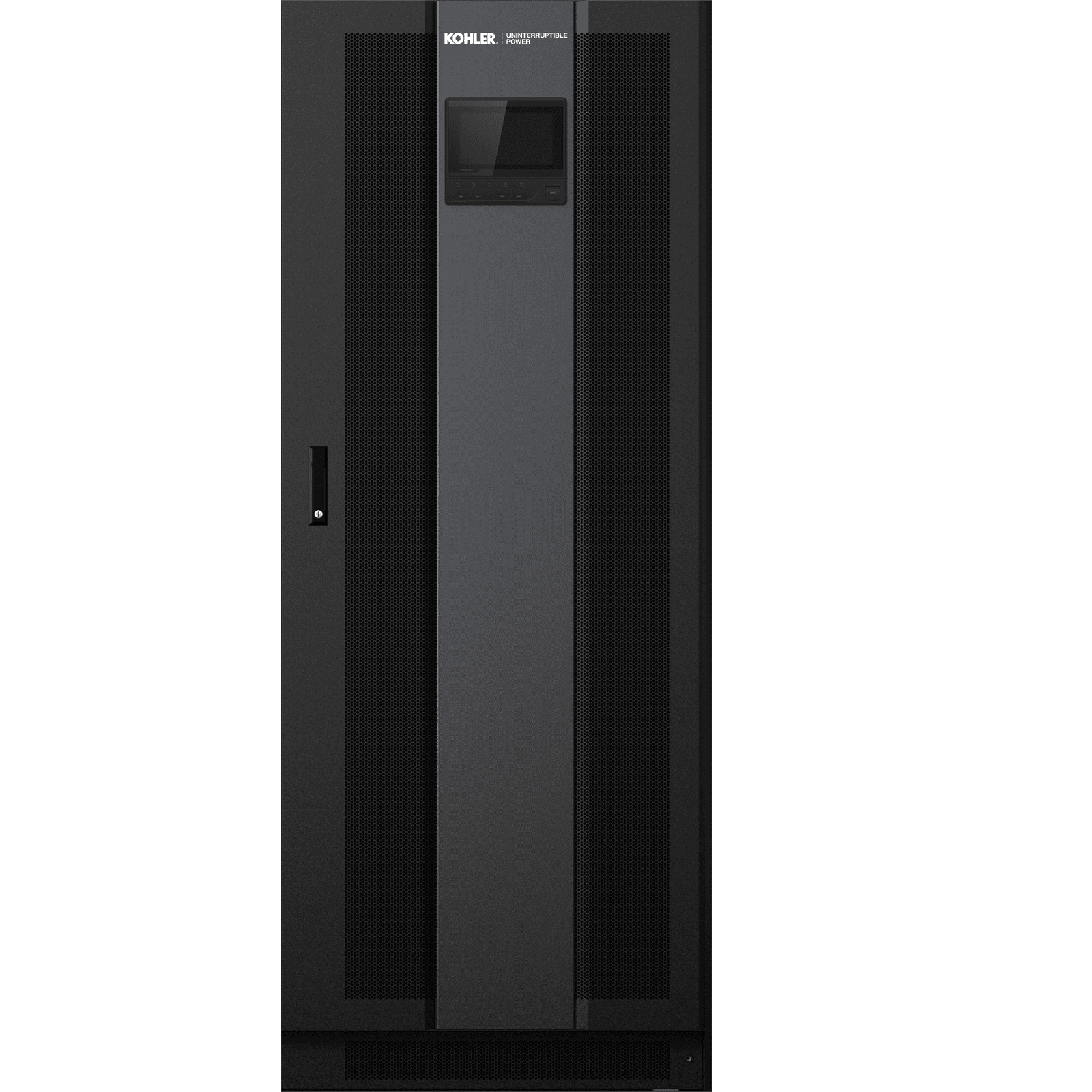

EW 6000TX (UPS 10-200kVA)

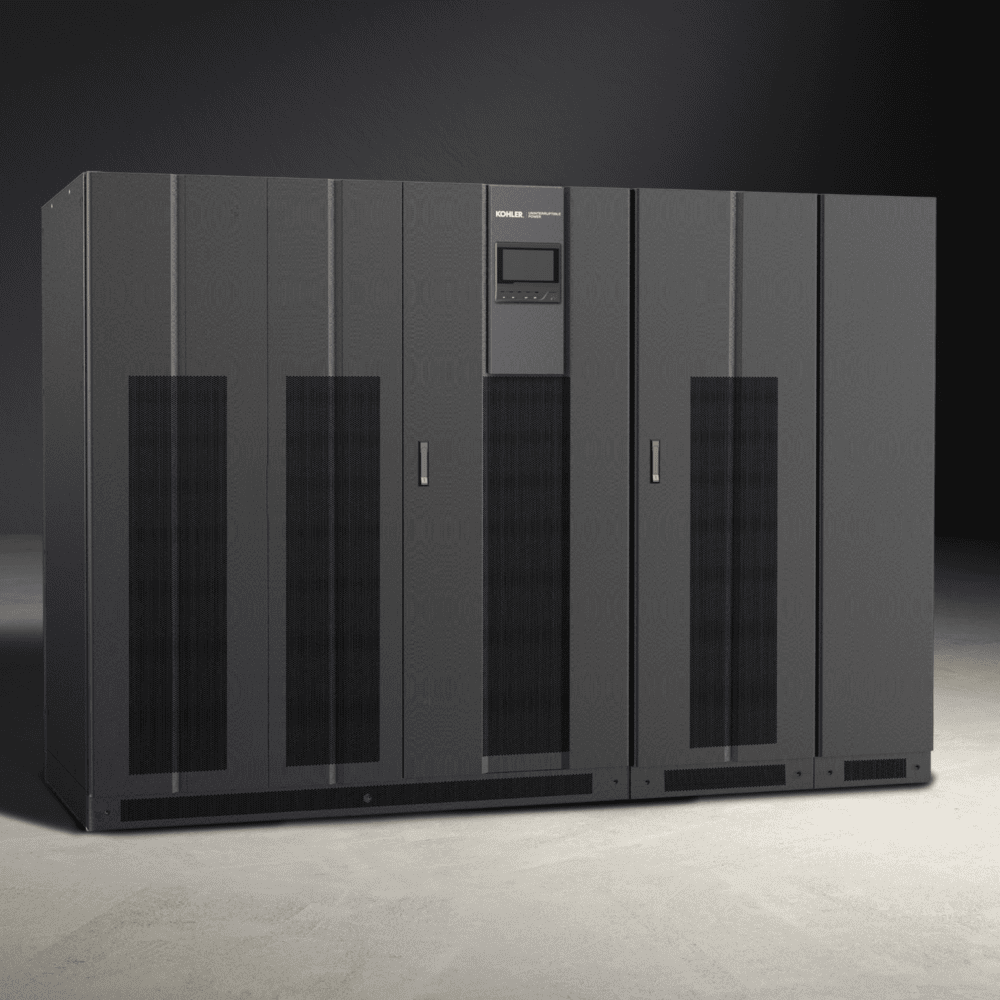

EW 6000TX (UPS 300-600kVA)

Kohler EW 6000TX

Three-phase, transformer-based UPS, for computer rooms, data centres, precision instruments, and industrial processes. The Kohler EW 6000TX range is available from 10–600kVA.

Tags: , , ENQUIRE NOW

Description

The Kohler EW 6000TX, transformer-based, standalone UPS range includes two key ranges:

  • 10-200kVA
  • 300-600kVA

The smaller size in the range is designed toward supporting computer rooms, data centres and precision instruments, whilst the larger sized UPS is designed more for finance companies, data centres, government and national defence, telecommunications systems, transportation, energy and industrial processes.

The Kohler EW 6000TX range combines high reliability and intelligent management, with enhanced green factors such as ECO mode. The flexibility and user-friendliness of the design, alongside innovative technology, provides an outstanding solution for your UPS requirements.

To compare the three key product ranges, click on the Technical Specification tab.

Complete the ‘Get a Quote’ enquiry or ring us directly on +65 6302 0702 and we’ll get back to you immediately to discuss your requirements.

Additional information

Actual kVA

10-600 kVA
Standalone / Modular

Standalone
Type

Three Phase EW

Technical Specification

Input Specifications

ModelEW 6000TX
(UPS 10-200kVA)		EW 6000TX
(UPS 300-600kVA)
TypeThree phaseThree phase
Standalone/ModularStandaloneStandalone
TransformerlessNoNo
Power Factor (PF)0.9
(0.8/1.0 optional)		>0.999
THDi<2% (full load)
Input Voltage (Vac)380/400/415300/400/415 (settable)
Input Frequency (Hz)50/60+10%
(+5% optional)		50/60+5%
(+10% optional)
Bypass Voltage Range (Vac)+20%

Output Specifications

ModelEW 6000TX
(UPS 10-200kVA)		EW 6000TX
(UPS 300-600kVA)
Output Capacity (kVA)10, 20, 30, 40, 60, 80, 100, 120, 160, 200300, 400, 500, 600
Output Voltage (Vac)L-N: 220/230/240+1%
L-L: 380/400/415+1%		380/400/415+1%
WaveformPure sine wavePure sine wave
THD<2% (linear load)<0.5% (linear load)
<3% (RCD load PF=0.8, <6%)
System Efficiency>92%>95%
Output Overload Capacity120% load for 10 minutes
150% load for 1 minute		130% load for long time
150% load for 10 minutes

Battery Specifications

ModelEW 6000TX
(UPS 10-200kVA)		EW 6000TX
(UPS 300-600kVA)
Battery Voltage (VDC)Model 10, 20, 30, 40, 60, 80, 100, 120, 160:
348 (360 optional)

Model 200:
384 (348/380/372 selectable)		480
(12V battery from 32 to 42 cells selectable)
Battery Charging Current (A)Model 10, 20, 30, 40, 60, 80, 100, 120, 160:
10-40 selectable

Model 200:
10-100 selectable		20-100

Other

ModelEW 6000TX
(UPS 10-200kVA)		EW 6000TX
(UPS 300-600kVA)
DisplayTouchscreen + LEDTouchscreen + LED
Communication InterfaceRS485
MODBUS
(Dry Contact & SNMP - optional)		RS232/RS485
Dry Contact
(MODBUS & SNMP - optional)
Noise (dB)Model 10, 20, 30, 40, 60, 80, 100, 120, 160:
<65

Model 200:
<70		Model 300T & 400T:
72

Model 500T & 600T:
75
Working Temperature (°C)0 ~ +40-5 ~ +40
Dimensions (mm)
WxDxH		up to:
1400 x 1000 x 1850		up to:
2200 x 1000 x 1800
Max Weight (kg)2400

Documentation

Brochure

 Download Kohler EW 6000TX Range (UPS 10-600kVA) Brochure

Technical Specification

 Download Kohler EW 6000TX (10-600kVA) Technical Specification
 Download Kohler EW 6000 (300-600kVA) Technical Specification
