Ideal for: Server, network, VOIP and telecommunication applications

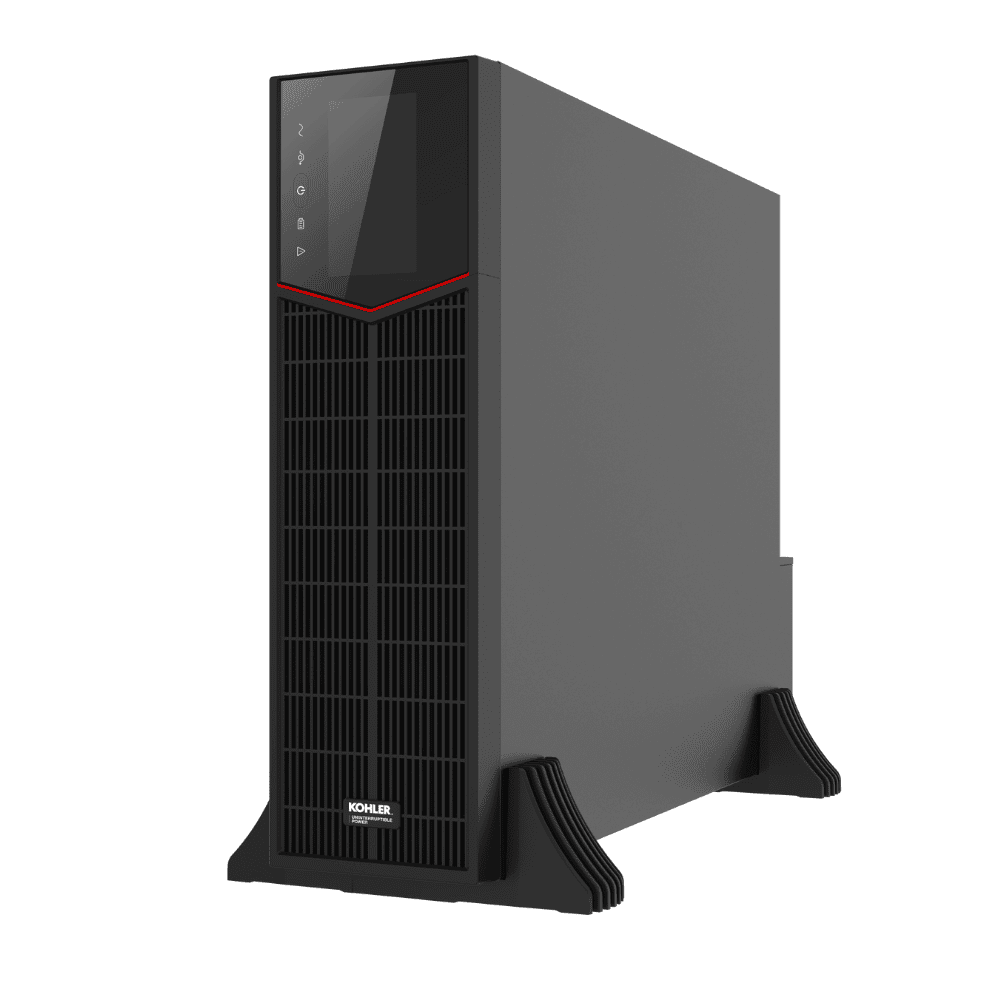

High efficiency, continuous online double conversion three-phase 19” rack-mountable or tower UPS for mission critical environments that demand reliability, quality and sustainability. 3U high design for minimal rack footprint and flexible 3:3 / 3:1 or 1:1 phase input and output with unity (1.0) output power factor.
KOHLER EW 6000RM model range
The KOHLER EW 6000RM is available in 4 ratings; 10 kVA, 20 kVA, 30 kVA and 40 kVA. Compatible with VRLA or lithium-ion batteries, either as matching rack-mountable battery modules (2 sizes) or in standalone cabinets or racks, the systems can be completed with coordinating distribution boxes (2 sizes).
Advanced, resilient design
The advanced design of the KOHLER EW 6000RM enables high AC/AC efficiencies (up to 96%), reducing energy loss, heat emission and running costs. To ensure resilience and prevent a single point of failure, the UPS uses a dual DSP control system. High end electrical components, intelligent fan control with independent air-ducting, and conformally-coated circuit boards ensure not just efficiency and resilience but also long service life.
Practical range of output options
Each unit comes with RS 232 communications and Emergency Power Off (EPO) functionality as standard. It is also possible to select an SNMP card or RS 485 + dry contact card.
Clear, user-friendly touch screen display

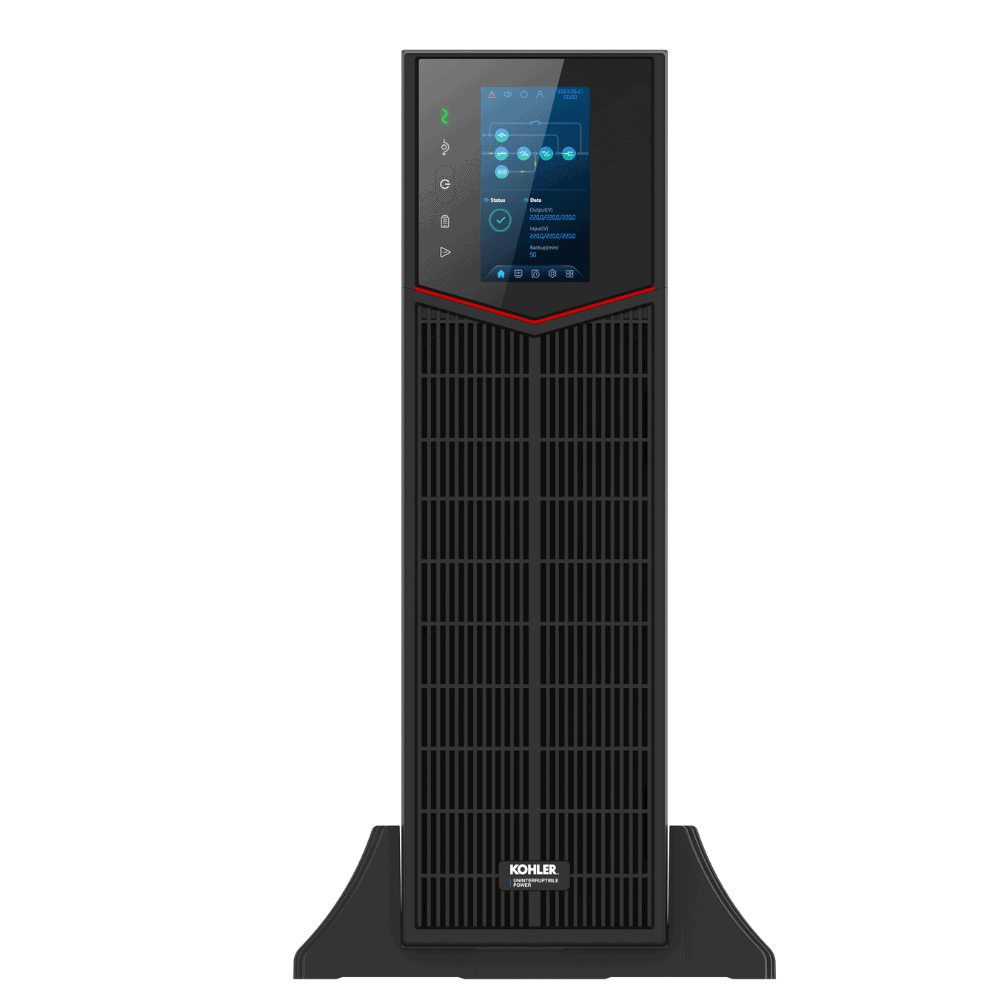

A clear, 4.3” touch screen display provides easy access to settings and information via the system menu.
| Weight | 18.5 kg (10-20 kW); 34.5 kg (30-40 kW) |
|---|---|
| Actual kVA | 10 – 40 kVA |
| Type | Three-phase / Single-phase |
| Rated output voltage range | 380/400/415 ±1% Vac |
| Working Mode | Online double conversion |
| Efficiency | Max. 96% |
| Maintenance bypass | Yes |
| Network / web interface | RS232 (SNMP, RS485 + dry contact card optional) |
| Volt free contacts | Option |
| Input current distortion THDi @100% load | ≤3% (resistive load); ≤5% (non-linear full load) |
| Input power factor @100% load | ≥0.99 |
| Hot-swappable modules | Battery only |
| Transformerless | Yes |
| Standalone / Modular | Standalone |
| Installation | Hardwired to terminals |
| Dimensions – mm | 10 – 20 kVA UPS W438 x D535 x H130 (3U)
10 – 20 kVA EBM and Distribution box, each W438 x D500 x H130 (3U) 30 – 40 kVA UPS W438 x D720 x H130 (3U) 30 – 40 kVA EBM and Distribution box, each W438 x D680 x H130 (3U) |
