Ideal for: Servers, Networks, VoIP and telecommunication applications

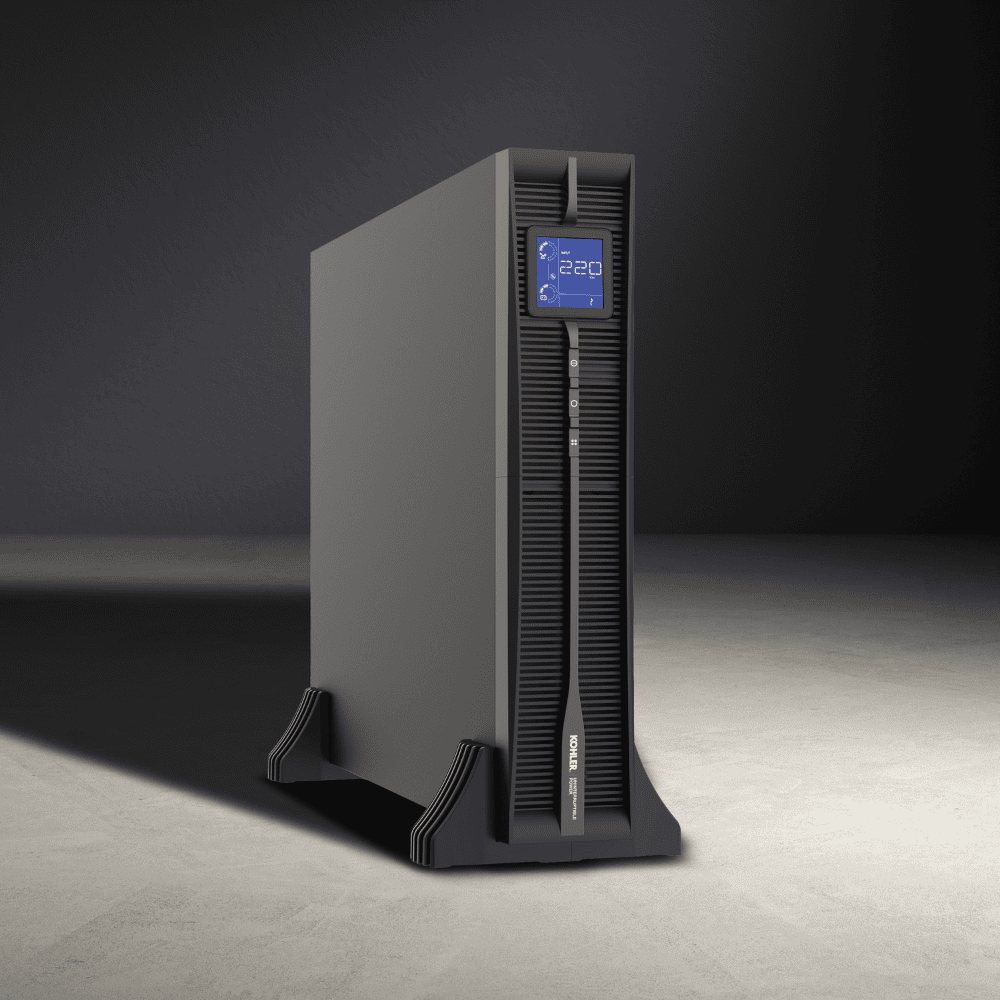

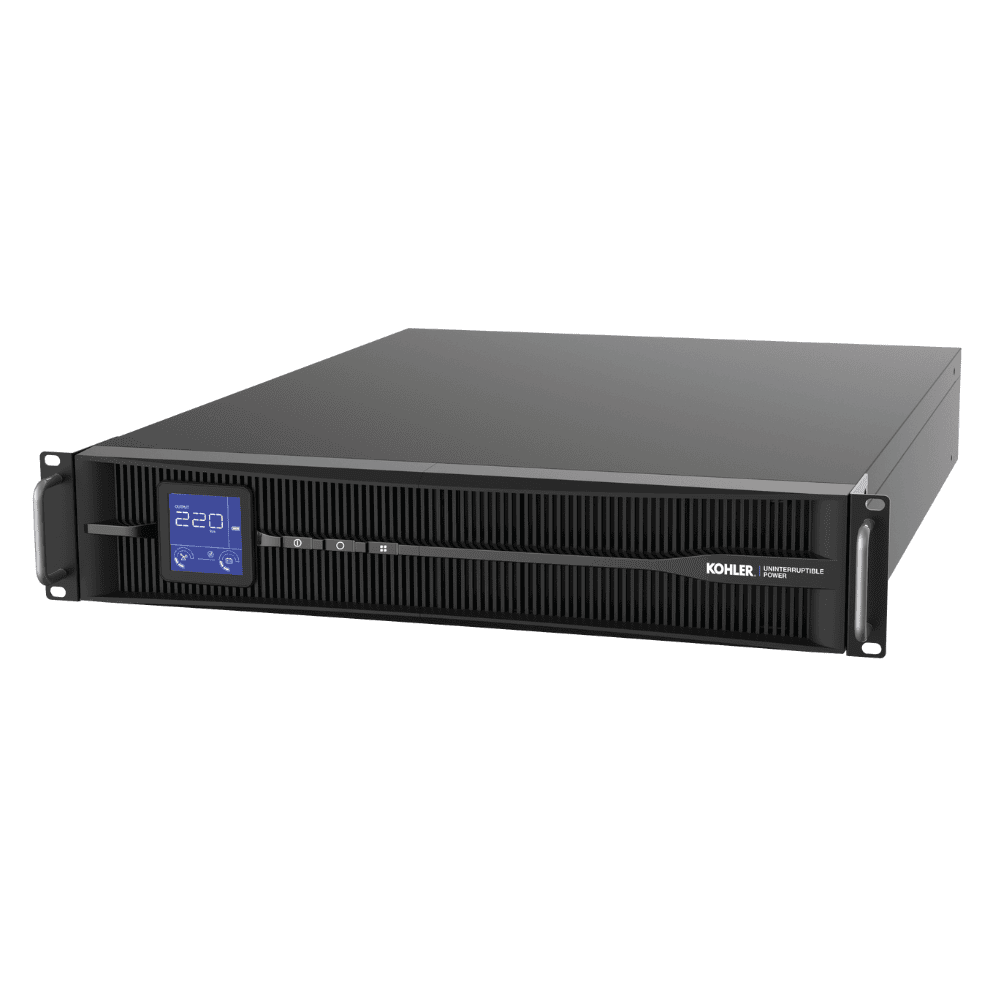

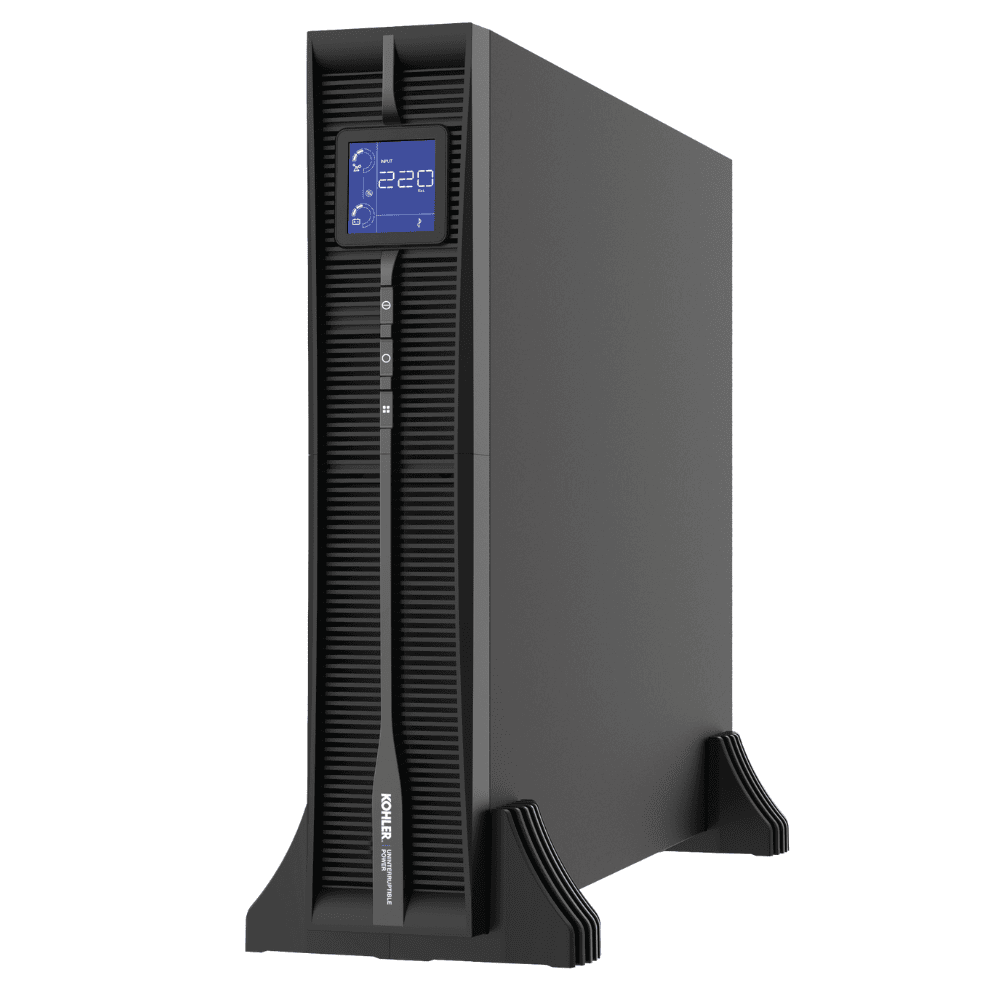

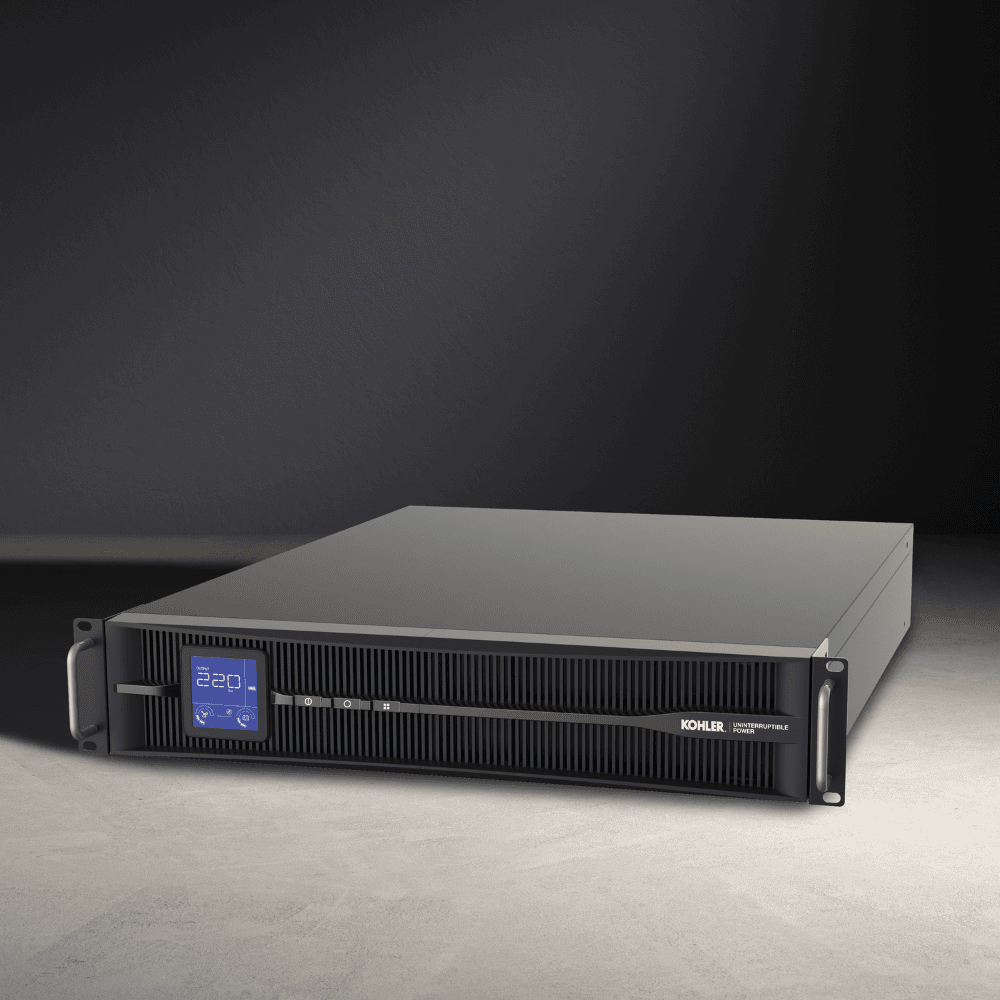

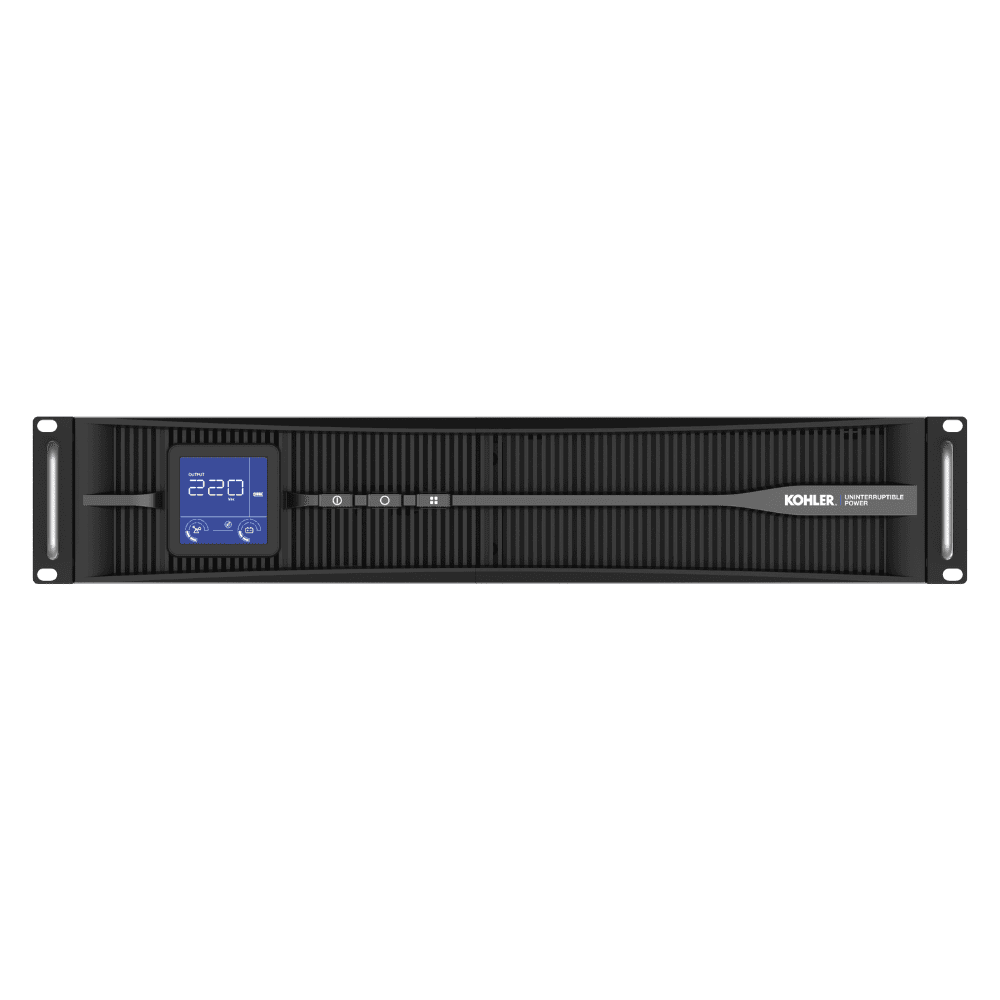

The KOHLER PW 1000RM-Li is a continuous online double conversion single-phase UPS for mission critical environments that require the additional advantages offered by lithium-ion batteries – increased autonomy, reduced temperature effects and longer battery life. Packaged in a compact 2U 19” rack mountable unit or standalone tower, the PW 1000RM-Li is available in a choice of four sizes; 1 kVA, 2 kVA, 2.2 kVA and 3 kVA.
KOHLER PW 1000RM-Li model range
The KOHLER PW 1000RM-Li is available in 4 ratings; 1 kVA, 2 kVA, 2.2 kVA and 3 kVA. Each of these has internal Li-ion batteries offering 11 minutes of autonomy on 1, 2 and 3 kVA models and 22 minutes on the 2.2 kVA model.
Advanced, resilient design
The advanced design of the KOHLER PW 1000RM-Li enables high AC/AC efficiencies, reducing energy loss, heat emission and running costs. High-end electrical components and batteries ensure maximised resilience with a battery lifetime of up to 8 years, up to 1000 cycles and a fully rated operating temperature range of -5˚C to +40˚C.
Flexible, configurable outputs

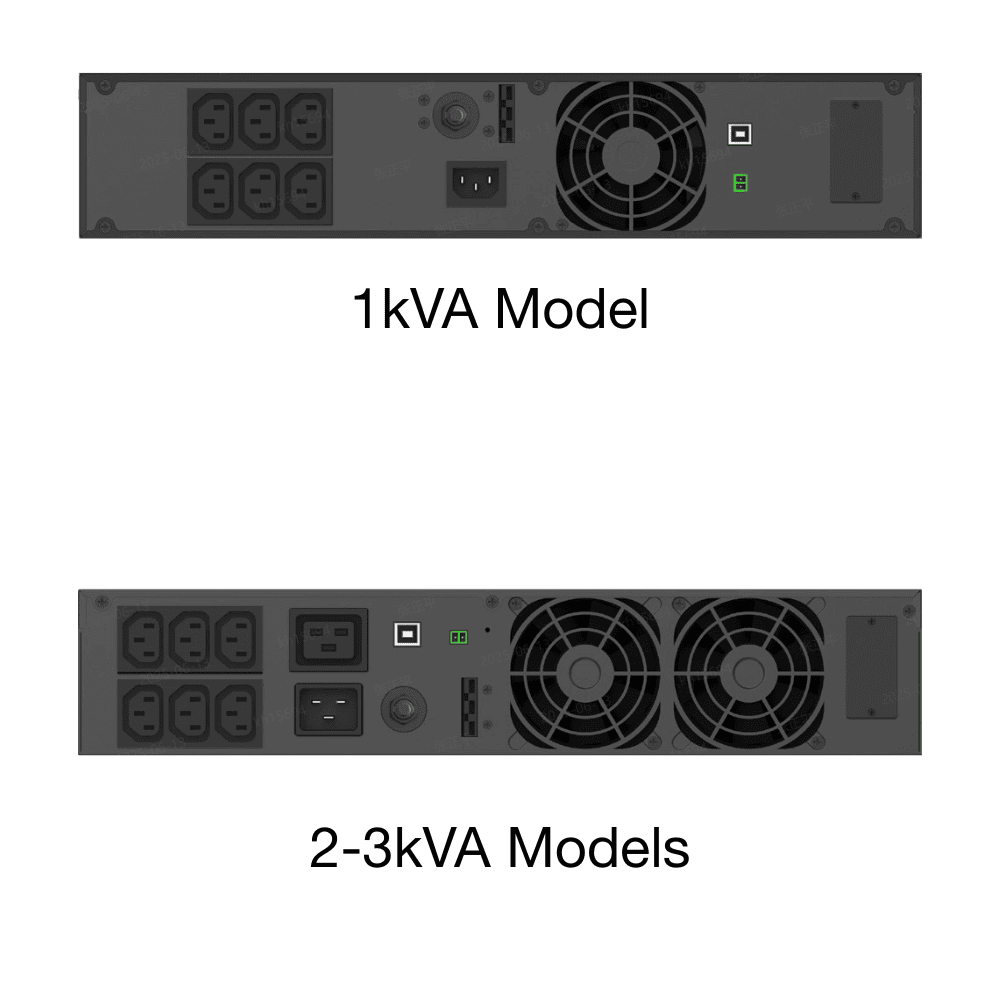

All models feature 6 x IEC320 C13 outlets, whilst 2kVA and above models also offer an additional IEC C19 outlet. Standard communication ports include EPO (Emergency Power Off), USB slot and RS232 + dry contact card. An optional SNMP card is also available.
User-friendly, software rotatable LCD display
A clear, bright, blue-backlit LCD display with a wide 140˚ viewing angle provides easy access to key information. The display can be easily rotated via the menu to allow for use in either vertical (tower) or horizontal (rack) orientations.
Confidence-giving diagnostics and alarms
To provide confidence in the protection being provided by the UPS, the KOHLER PW 1000RM-Li incorporates self diagnostics and will report faults via codes on the display and issues such as low battery, abnormal AC input or UPS failure as an alarm.
| Weight | 8.9 – 19.1 kg including internal batteries |
|---|---|
| Actual kVA | 1-3 kVA |
| Type | Single-Phase |
| Rated output voltage range | 208/230 ± 1% |
| Working mode | Online double conversion |
| Efficiency | Max. 91.5% (1-2kVA)/ 92.5% (2.2kVA) / 92.0% (3 kVA) |
| Maintenance bypass | No |
| Network/web interface | USB and RS232 + dry contact card as standard. SNMP card optional. |
| Volt free contacts | Yes |
| Input current distortion THDi @100% load | <5% (non-linear) |
| Input power factor @100% load | ≥0.99 |
| Hot-swappable modules | No |
| Transformerless | Yes |
| Standalone/Modular | Tower or Rack Mounted |
| Installation | 1kVA Standard C13 Mains Lead 2-3kVA C19 connector |
| Dimensions – mm | 1kVA W438 x D420 x H87 (2U) 2kVA W438 x D570 x H87 (2U) 2.2kVA W438 x D615 x H87 (2U) 3kVA W438 x D570 x H174 (4U) |
