Ideal for: Servers, Networks, Laboratories, Manufacturing and Telecommunications

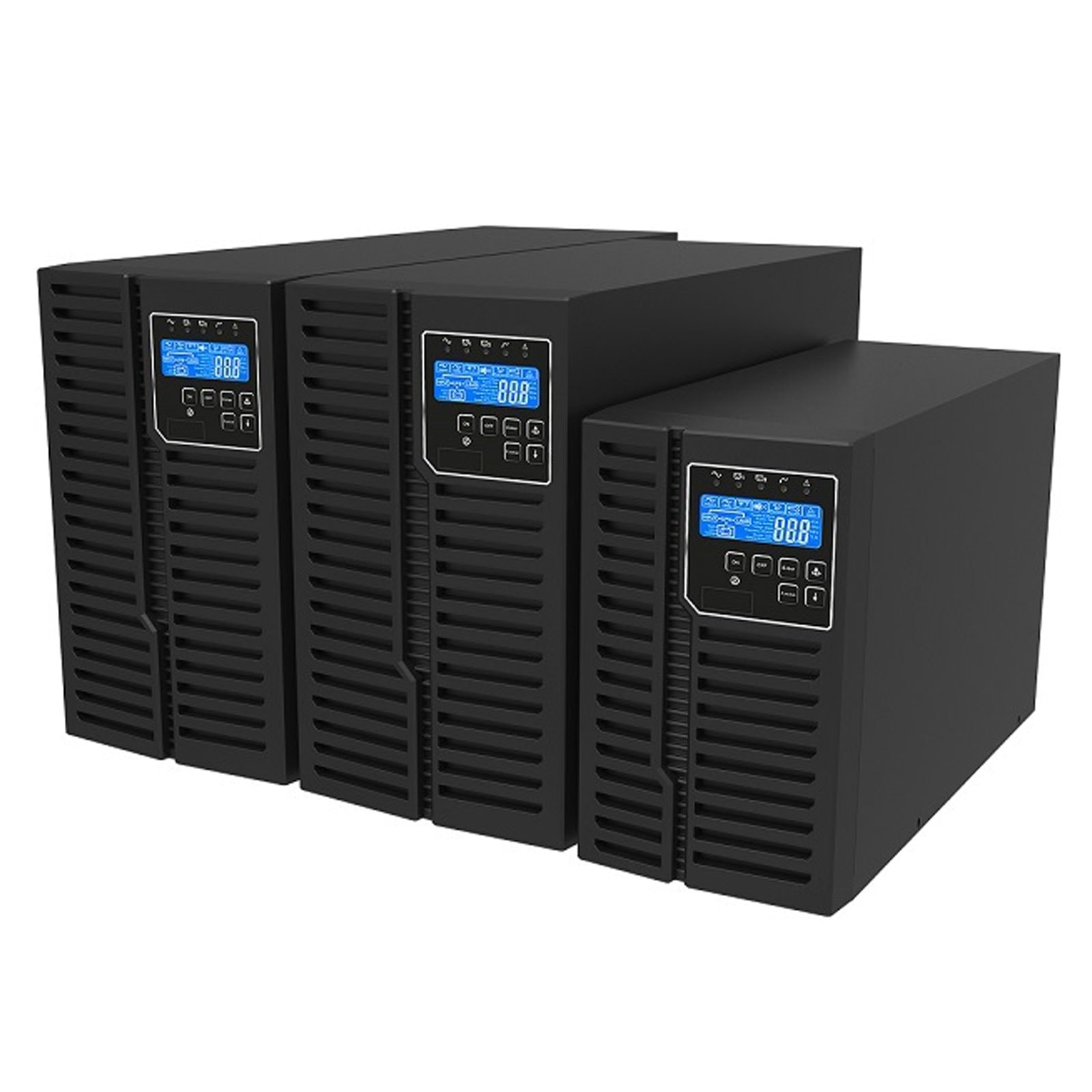

The Kohler PW 1000/OT is an online double conversion 1-Phase UPS that delivers a continuous sinusoidal voltage to ensure maximum power protection, while filtering and stabilising the power supplied to protect against mains disturbances.
This Tower design UPS is available in 1, 2, 3, 6, 10, 15 & 20kVA models. With a 0.9 power factor and high efficiency up to 96.5%, Kohler PW 1000/OT combines all the smart functionality you would expect with a standard digital display and a wide range of communications interface options.
| Actual kVA | 1-20kVA |
|---|---|
| Standalone / Modular | Standalone |
| Type | Single-Phase |
Below are the specifications and available configurations/accessories for the Kohler PW 1000/OT.
Complete the ‘Get a Quote’ enquiry or ring us directly on +65 6302 0702 and we’ll get back to you immediately to discuss your requirements.
| Power | Phase in : Phase out | Power Factor | Efficiency Line / ECO | Autonomy (100% Load) | Autonomy (50% Load) | Autonomy (25% Load) | Dimensions (WxHxD) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| PW1000/OT-1 | 1kVA / 900 W | 1 : 1 | 0.9 | <92% / <96.5% | <3 mins | 11 mins | 28 mins | 154 x 211 x 383 mm | 11 |
| PW1000/OT-2 | 2kVA / 1.8kW | 1 : 1 | 0.9 | <92% / <96.5% | <4 mins | 12 mins | 25 mins | 192 x 250 x 470 mm | 22 |
| PW1000/OT-3 | 3kVA / 2.7kW | 1 : 1 | 0.9 | <92% / <96.5% | <2 mins | 8 mins | 27 mins | 148 x 198 x 525 mm | 25 |
| PW1000/OT-6 | 6kVA / 5.4kW | 1 : 1 | 0.9 | <90% / <96.5% | <5 mins | 15 mins | 38 mins | 290 x 645 x 748 mm | 86 |
| PW1000/OT-10 | 10kVA / 9kW | 1 : 1 | 0.9 | <90% / <96.5% | <5 mins | 12 mins | 30 mins | 290 x 645 x 748 mm | 96 |
| PW1000/OT-15 | 15kVA / 13.5kW | 3 : 1 | 0.9 | <90% / <96.5% | No Internal Battery (See External Battery Cabinet) | No Internal Battery (See External Battery Cabinet) | No Internal Battery (See External Battery Cabinet) | 290 x 645 x 748 mm | 60 |
| PW1000/OT-20 | 20kVA / 18kW | 3 : 1 | 0.9 | <90% / <96.5% | No Internal Battery (See External Battery Cabinet) | No Internal Battery (See External Battery Cabinet) | No Internal Battery (See External Battery Cabinet) | 290 x 645 x 748 mm | 60 |
| Additional Backup (100% Load) | Additional Backup (50% Load) | Additional Backup (25% Load) | Dimensions (WxHxD) | Weight (kg) | |
|---|---|---|---|---|---|
| PWBAT-T-1kVA | 10 mins | 28 mins | 70 mins | 154 x 258 x 405 mm | 18 |
| PWBAT-T-2kVA | 10 mins | 28 mins | 70 mins | 192 x 320 x 553 mm | 31 |
| PWBAT-T-3kVA | 8 mins | 22 mins | 60 mins | 192 x 320 x 553 mm | 31 |
| PWBAT-T-6kVA | 25 mins | 55 mins | 135 mins | 290 x 631 x 748 mm | 105 |
| PWBAT-T-10kVA | 20 mins | 50 mins | 70 mins | 290 x 631 x 748 mm | 105 |
| PWBAT-T-15kVA | <9 mins | 30 mins | 60 mins | 290 x 631 x 748 mm | 110 |
| PWBAT-T-20kVA | 10 mins | 25 mins | 45 mins | 290 x 631 x 748mm | 110 |
| Model No. | Size | Dimensions (WxHxD) |
|---|---|---|
| ATS-216 | Automatic Transfer Switch 220V, 16A Max. | 440 x 1U |
| ATS-230 | Automatic Transfer Switch 220V, 32A Max. | 440 x 1U |
| ITS-230 | Automatic Transfer Switch 220V, 32A Max. With External Maintenance Bypass Switch | 440 x 1U |
| Model No. | Accessory | Dimensions (WxHxD) |
|---|---|---|
| PW1000-SNMP | SNMP Card | |
| ATS-SNMP | ATS-SNMP Card | |
| PW1000-DCC | Dry Contact Card | |
| PW1000-RS485 | RS485 Card (for 6, 10, 15 & 20kVA) | |
| PW1000-ESB | External Socket Box (for 6kVA 92 x IEC C19; 8 x IEC C13) | 440 x 2U |
| PW1000-PDU-1-2-3 | Maintenance Bypass PDU (for 1, 2 & 3kVA) - Rack or Wall Mounted | 440 x 2U |
| PW1000-PDU-6 | Maintenance Bypass PDU (for 6kVA) - Rack or Wall Mounted | 440 x 4U |
| PW1000-PDU-10 | Maintenance Bypass PDU (for 10kVA) - Rack or Wall Mounted | 440 x 5U |
| PW1000-PDU-15-20 | Maintenance Bypass PDU (for 15 & 20kVA) - Rack or Wall Mounted | 440 x 5U |
| PW1000-EC-250 | 250W External Charger with Case (36VDC, 72VDC Use) | |
| PW1000-EC-1000 | 1000W External Charger with Case (240VDC Use) |
